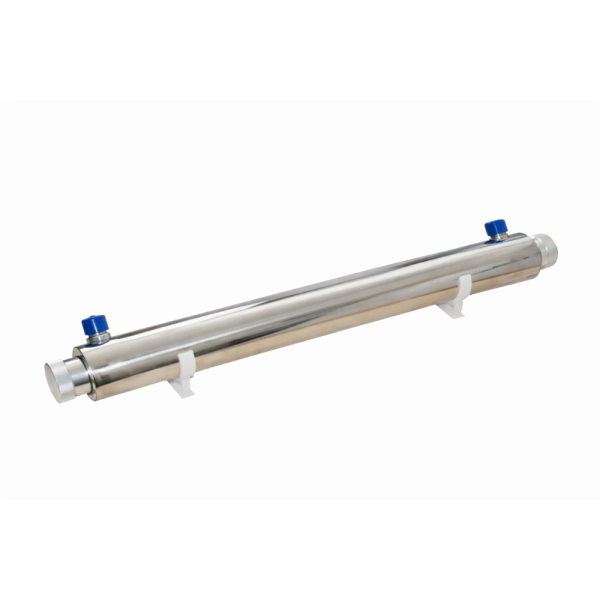

UV lamp 55W 2,7 m³/h

UV lamp 55W 2,7 m³/st

WATER REQUIREMENTS: The UV disinfection system is designed for use with visually clear, uncolored water.

• Water temperature: 2-45°C

• Iron*: <0.3 ppm (0.3 mg/L)

• Hardness*: <7 gpg (120 mg/L)

• Turbidity*: <1 NTU

• Color*: <20 degrees

• Manganese*: 0.05 ppm (0.05 mg/L)

• UV transmittance*:  >75%

Purification type: Removal of bacteria and viruses
Installation size: 3/4"
UV lamp lifespan: 8000 hours
Maximum working pressure: 7 atm
Lamp dimensions: 925 mm
Lamp diameter: 64.7 mm
Working power: 55 W
Number of lamp contacts: 4
Electrical circuit: 512 mA
UV wavelength: 153 mm
Number of lamps: 1
Performance: 2.7 m³/h

Made in: China
