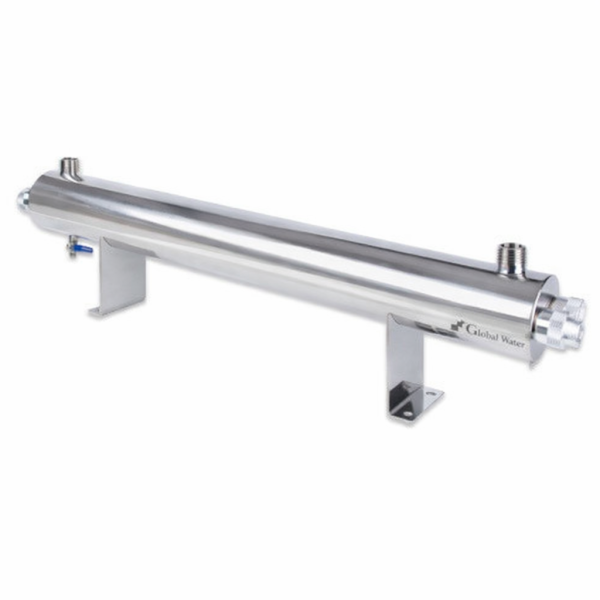

UV lamp 110W 5,4 m³/h

WATER REQUIREMENTS: The UV disinfection system is designed for use with visually clear, uncolored water.

• Water temperature: 2-45°C
• Iron: <0.3 ppm (0.3 mg/L)
• Hardness: <7 gpg (120 mg/L)
• Turbidity: <1 NTU
• Color: <20 degrees
• Manganese: 0.05 ppm (0.05 mg/L)
• UV transmittance: >75%

Purification type: Removal of bacteria and viruses
Installation size: 1"
UV lamp lifespan: 8000 hours
Maximum working pressure: 8 atm
Lamp dimensions: 1012 mm
Lamp diameter: 133 mm
Working power: 110 W
Number of lamp contacts: 4
Electrical circuit: 512 mA
UV wavelength: 153 mm
Number of lamps: 2
Performance: 5.4 m³/h

Made in: China

UVSterilizersUserManual.pdf
